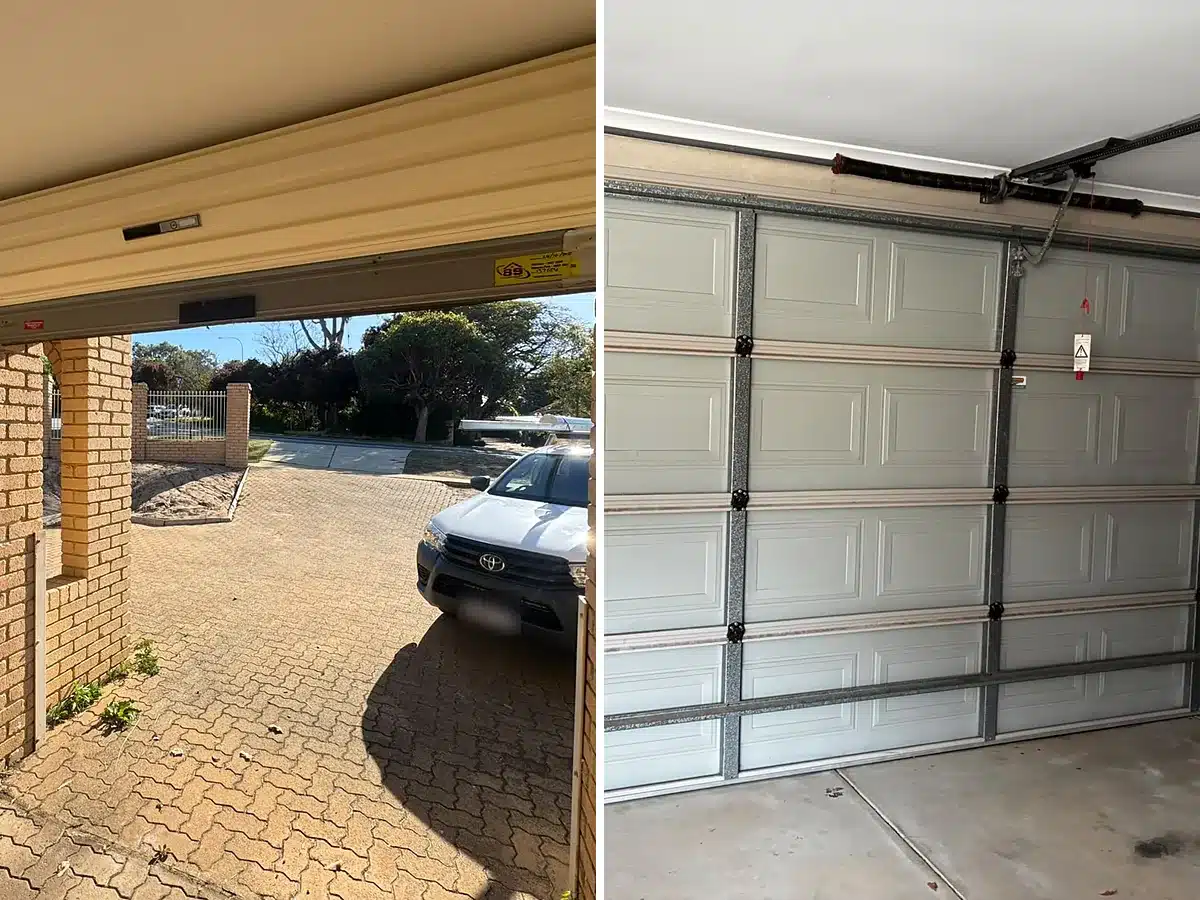

Roller Door Vs Sectional Door: Which Suits Your Home?

Roller or sectional? It’s often the first question we talk through when you’re choosing a new garage door, and you’ll live with the answer for 15 years or more. Both open vertically, both can be automated and both are common on Perth homes, but they use your garage space differently, cost different amounts and need different levels of maintenance.

Our founder, Tyler Gefterman, has spent more than 12 years in garage doors, gates and construction, and our Osborne Park team supplies, installs and services both types across Perth. Here’s how these two garage door types compare, to help you choose the right garage door for your home, budget and style preferences.

What Is A Roller Door?

A roller door is a single curtain of ribbed steel that rolls up into a compact drum above the garage opening. The springs that help lift it sit inside the drum, and the curtain runs in a guide on each side. With fewer moving parts than other designs, roller garage doors are affordable and extremely durable, which is why they’re a favourite for homes, sheds and workshops.

What Is A Sectional Garage Door?

A sectional garage door is made of several horizontal panels joined by hinges. Small rollers on each panel run in vertical tracks either side of the opening, then follow curved tracks so the door slides back and sits parallel to the garage ceiling. Unlike traditional garage doors that swing outwards, sectional garage doors open vertically, so you can park the car close to the door without losing driveway space. They come in various materials and finishes, from steel and aluminium to timber-look designs, and insulated panels improve thermal efficiency.

Key Differences Between Roller And Sectional Doors

Here’s how they compare on the points most homeowners raise:

• Space: a roller door is compact and space efficient, keeping the ceiling clear. A sectional runs its tracks back under the garage ceiling, which leaves less room for storage.
• Cost: a roller door is usually the cheaper option. On our 2026 price list, a standard single roller door costs about $1,200 to $3,000 installed, against $1,800 to $3,800 for a single sectional.
• Security: sectional doors are typically more secure, because the solid panels sit snugly against the door frame and are harder to force than a roller curtain.
• Insulation: sectional panels can be insulated, and a polyurethane core insulates better than polystyrene. A roller curtain is a single skin of steel.
• Style: sectionals offer far more design options, while rollers keep that classic ribbed look.
• Maintenance: rollers have fewer moving parts; sectionals have more moving parts and ask for a little more maintenance.

Pros And Cons Of Roller Doors

Rollers shine when the budget is tight or the garage ceiling is precious.

Pros:

• Lower cost to buy and install
• Space saving, with nothing running along the ceiling
• Fewer parts to wear out or adjust

Cons:

• Fewer styles and finishes to choose from
• Little or no insulation, so the garage bakes in a Perth summer
• Not as secure as a well-fitted sectional
• One bad bump can mean replacing the whole door curtain, because dents are hard to repair

Pros And Cons Of Sectional Doors

Sectionals are a common pick for modern homes, especially where the garage fronts the street.

Pros:

• Can be insulated, keeping the garage cooler in summer and warmer in the winter months
• Typically more secure, and a tight seal around the opening keeps out dust and weather, which counts around Joondalup’s red dust
• A wide range of customisable options, from slimline panels to custom garage doors in timber-look or powder-coated colours
• Panel damage can often be fixed by replacing individual panels, if your design is still available

Cons:

• Higher cost compared with a roller door of the same size
• The tracks take up ceiling space
• More moving parts, so regular servicing is needed to catch track misalignment or worn rollers before they cause costly repairs
• More complex to install, so professional installation is essential

What About Tilt Doors And Other Garage Door Types?

Tilt doors are one solid panel that pivots up and into the garage. Because the bottom of the door swings out as it opens, tilt garage doors need more space to operate than a sectional. They suit limited headroom, unusual openings or a tailored design, and a single tilt door costs about $1,700 to $2,300 installed. For most residential garages, though, the choice comes down to a roller or a sectional.

Which Door Suits Your Home?

It comes down to several factors:

• Watching the budget? A roller gives you a dependable door for less.
• How do you use the garage? If it doubles as a gym, workshop or office, or sits under a bedroom, an insulated sectional garage door with a quiet opener earns its keep. Perth summers push garages above 40 degrees, and we’ve seen 8 to 10 degree drops after an insulated install.
• Short on storage? A roller leaves the garage ceiling clear for racks, kayaks and the Christmas decorations.
• How important is appearance? The garage door is a big part of your home’s exterior, and a sectional gives you more ways to match the style of the house.
• Near the coast? Salt air carried by the Fremantle Doctor is hard on seals and hardware in suburbs like Cottesloe and Rockingham, so plan on more servicing either way.
• How hands-on are you? Rollers need little attention, while sectionals reward regular servicing with years of smooth operation.

Frequently Asked Questions

Quick answers to common questions.

Which Is Better, A Roller Or A Sectional Garage Door?

Honestly? Neither wins everywhere. A roller makes more sense when budget and ceiling space matter; a sectional, when insulation, security and design come first.

Are Sectional Doors Cheaper Than Roller Doors?

No. Sectional doors typically cost more because of the extra panels, tracks and hardware. A double sectional is about $3,200 to $6,000 installed, compared with about $2,000 to $4,200 for a double roller door. Our garage door prices page has the full breakdown.

Which Garage Door Is More Secure?

A sectional door is usually harder to force open, because its panels sit tightly against the frame. Whichever you choose, a modern opener with rolling code remotes adds another layer of security.

Still Torn? Let’s Look At Your Garage

A roller comes out ahead on price, simplicity and ceiling space; a sectional, on insulation, security and design. Picture how you’ll use the garage on a Saturday morning, then weigh the space you have and the look you want from the street.

Whichever you pick, the installation matters as much as the door. A professional garage door installer checks the headroom, side room and door frame, sets the spring tension for the door’s actual weight and balances it by hand before the motor goes on, so it operates smoothly. We check conditions on site before recommending a spec, so book a free measure and quote or call 0489 266 468, and we’ll compare both on your garage and give you a fixed price.
